Bird's-Eye View (BEV) Transform

Module 01 painted every pixel onto a flat road. A bumper or a torso sits above that plane, so a flat map puts raised objects in the wrong place. Lift–splat–shoot keeps each pixel as a ray with many possible depths, splats mass into top-down bins, then mixes neighbors with a small convolution.

Each section explains one idea, then runs code. Predict first, then execute the cell.

In [1]

import importlib.util
import os, random, subprocess, sys
from pathlib import Path

import matplotlib
import matplotlib.pyplot as plt
import numpy as np
import torch
import torch.nn.functional as F

def keep_inline():
    # Some course scripts select a file-only backend on import.
    # Put figures back on the notebook backend so plt.show() renders here.
    matplotlib.use("module://matplotlib_inline.backend_inline", force=True)
    ip = None
    try:
        from IPython import get_ipython
        ip = get_ipython()
    except Exception:
        ip = None
    if ip is not None:
        ip.run_line_magic("matplotlib", "inline")

%matplotlib inline

SEED = 0
random.seed(SEED)
np.random.seed(SEED)
torch.manual_seed(SEED)

def find_repo(start: Path) -> Path:
    for p in [start, start.parent]:
        if (p / "modules" / "03_bev_transform").is_dir():
            return p.resolve()
    return start.resolve()

REPO = find_repo(Path.cwd())
if not (REPO / "modules" / "03_bev_transform").is_dir():
    dest = Path.cwd() / "self-driving-ai-course"
    if not (dest / "modules" / "03_bev_transform").is_dir():
        subprocess.run(
            ["git", "clone", "--depth", "1", "https://github.com/vvknyn/self-driving-ai-course.git", str(dest)],
            check=True,
        )
    REPO = dest.resolve()
    os.chdir(REPO)
else:
    os.chdir(REPO)

try:
    import torch as _t
    import cv2
    import matplotlib as _mpl
    import numpy as _np
except ImportError:
    subprocess.run(
        [sys.executable, "-m", "pip", "install", "-q", "torch", "torchvision",
         "--index-url", "https://download.pytorch.org/whl/cpu"],
        check=True,
    )
    subprocess.run(
        [sys.executable, "-m", "pip", "install", "-q", "-r", "requirements.txt"],
        check=True,
    )

sys.path.insert(0, str(REPO / "modules" / "03_bev_transform"))
sys.path.insert(0, str(REPO / "modules" / "01_camera_geometry"))
sys.path.insert(0, str(REPO / "modules"))

from lift_splat_shoot import DepthFeatureLift, LiftSplatShoot
from calibrate_rig import build_tesla_style_rig

def shown_meter(value):
    rounded = round(float(value), 3)
    return 0.0 if rounded == 0 else rounded

print("Repo:", REPO)
print("device:", torch.device("cpu"))
keep_inline()

Output

Repo: /tmp/course
device: cpu

1. Flat ground, smeared rays, wrong squares

Picture the destination before the formulas. Inverse perspective assumes the world is a flat plate. A point on the road and a raised point at the same forward and lateral spot project to different pixels; forcing both pixels onto the ground plane writes the raised object down the road.

A pixel is also a ray: depth is not one number but a pile of bins. Spread probability evenly and the obstacle is painted along the whole ray on the top-down map. Pick the wrong bin and the pillar lands in the wrong square on the floor grid.

Predict: the road point returns near 20 m forward on the ground plane. The raised point's pixel, forced onto that plane, lands much farther forward. On the floor preview, true depth and half depth should land on different forward bins.

In [2]

rig = build_tesla_style_rig()
front = rig["front"]
print(f"front camera: {front.width} x {front.height}")

ground_ego = np.array([[20.0, 0.0, 0.0]])
raised_ego = np.array([[20.0, 0.0, 1.0]])
uv_ground, valid_ground = front.project_ego_to_pixel(ground_ego)
uv_raised, valid_raised = front.project_ego_to_pixel(raised_ego)
ipm_ground, ipm_ground_ok = front.project_pixels_to_ground(uv_ground, ground_z=0.0)
ipm_raised, ipm_raised_ok = front.project_pixels_to_ground(uv_raised, ground_z=0.0)

print(f"ground pixel uv: ({uv_ground[0, 0]:.2f}, {uv_ground[0, 1]:.2f})")
print(f"raised pixel uv: ({uv_raised[0, 0]:.2f}, {uv_raised[0, 1]:.2f})")
print(f"IPM ground X: {ipm_ground[0, 0]:.2f}")
print(f"IPM raised X: {ipm_raised[0, 0]:.2f}")
print(f"true X ground: {ground_ego[0, 0]:.2f}")
print(f"true X raised: {raised_ego[0, 0]:.2f}")

P_ego = np.array([20.0, 0.0, 1.0])
P_cam = front.R @ P_ego + front.T.ravel()
d_raised = float(P_cam[2])
uv, valid_uv = front.project_ego_to_pixel(P_ego.reshape(1, 3))
u_raised = float(uv[0, 0])
v_raised = float(uv[0, 1])
print(f"raised ray u={u_raised:.3f} v={v_raised:.3f} d={d_raised:.3f}")

lss_geo = LiftSplatShoot()
K = torch.tensor(front.K, dtype=torch.float32)
R = torch.tensor(front.R, dtype=torch.float32)
T = torch.tensor(front.T, dtype=torch.float32)
packed = torch.tensor([u_raised * d_raised, v_raised * d_raised, d_raised], dtype=torch.float32)
ego_true = lss_geo.unproject_to_ego(packed.view(1, 1, 1, 3), K, R, T).reshape(3).detach()
raised_xyz = torch.tensor([shown_meter(ego_true[i]) for i in range(3)])

d_half = d_raised / 2.0
packed_half = torch.tensor([u_raised * d_half, v_raised * d_half, d_half], dtype=torch.float32)
ego_half = lss_geo.unproject_to_ego(packed_half.view(1, 1, 1, 3), K, R, T).reshape(3).detach()
half_xyz = torch.tensor([shown_meter(ego_half[i]) for i in range(3)])

xmin, xstep = 0.0, 0.5
ymin, ystep = -15.0, 0.5
nx_prev = int(round((40.0 - xmin) / xstep))
ny_prev = int(round((15.0 - ymin) / ystep))

def bin_index(x_value, y_value):
    xi = ((torch.tensor(float(x_value)) - xmin) / xstep).long()
    yi = ((torch.tensor(float(y_value)) - ymin) / ystep).long()
    return int(xi), int(yi)

true_xi, true_yi = bin_index(raised_xyz[0], raised_xyz[1])
half_xi, half_yi = bin_index(half_xyz[0], half_xyz[1])
print(f"true bin x_idx={true_xi} y_idx={true_yi}")
print(f"half bin x_idx={half_xi} y_idx={half_yi}")

num_bins = 20
depth_bins = torch.linspace(2.0, 42.0, num_bins)
flat_logits = torch.zeros(1, num_bins, 1, 1)
flat_probs = F.softmax(flat_logits, dim=1).squeeze()
true_bin = 9
peaked_logits = torch.full((1, num_bins, 1, 1), -5.0)
peaked_logits[0, true_bin, 0, 0] = 8.0
peaked_probs = F.softmax(peaked_logits, dim=1).squeeze()
entropy_flat = -(flat_probs * torch.log(flat_probs + 1e-9)).sum().item()
entropy_peak = -(peaked_probs * torch.log(peaked_probs + 1e-9)).sum().item()
spread_m = depth_bins[-1].item() - depth_bins[0].item()
print(f"flat entropy: {entropy_flat:.2f}")
print(f"peaked entropy: {entropy_peak:.4f}")
print(f"ray spread if flat: {spread_m:.1f} m")

keep_inline()
labels = ["ground Z=0", "raised Z=1"]
xpos = np.arange(len(labels))
width = 0.35

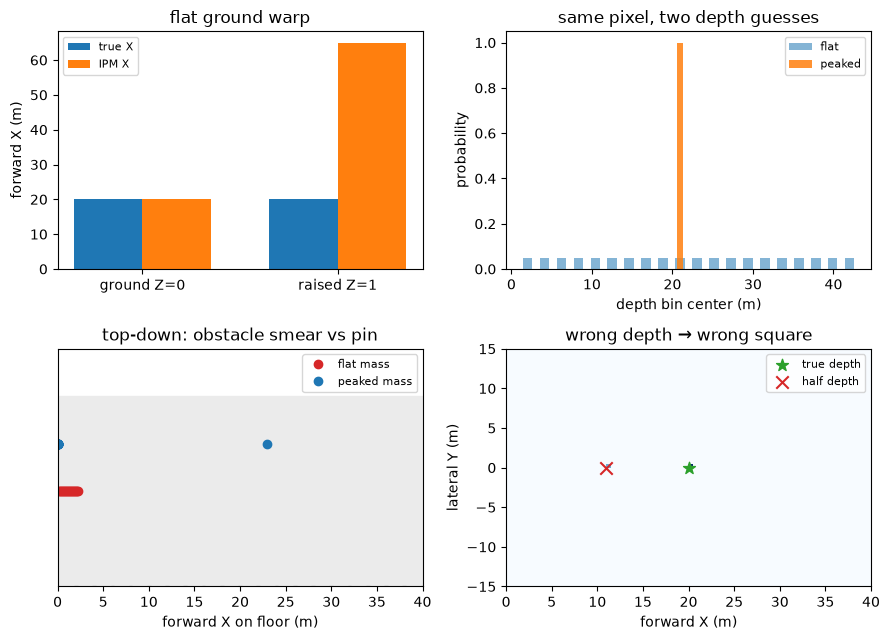

fig, axes = plt.subplots(2, 2, figsize=(9.0, 6.5))

ax = axes[0, 0]
ax.bar(xpos - width / 2, [ground_ego[0, 0], raised_ego[0, 0]], width, label="true X")
ax.bar(xpos + width / 2, [ipm_ground[0, 0], ipm_raised[0, 0]], width, label="IPM X")
ax.set_xticks(xpos)
ax.set_xticklabels(labels)
ax.set_ylabel("forward X (m)")
ax.set_title("flat ground warp")
ax.legend(fontsize=8)

ax = axes[0, 1]
ax.bar(depth_bins.numpy(), flat_probs.numpy(), width=1.2, alpha=0.55, label="flat")
ax.bar(depth_bins.numpy(), peaked_probs.numpy(), width=0.8, alpha=0.85, label="peaked")
ax.set_xlabel("depth bin center (m)")
ax.set_ylabel("probability")
ax.set_title("same pixel, two depth guesses")
ax.legend(fontsize=8)

ax = axes[1, 0]
xs_flat, xs_peak = [], []
for prob_f, prob_p, d_c in zip(flat_probs, peaked_probs, depth_bins):
    pack_f = torch.tensor([u_raised * d_c, v_raised * d_c, d_c], dtype=torch.float32)
    pack_p = pack_f
    xf = lss_geo.unproject_to_ego(pack_f.view(1, 1, 1, 3), K, R, T)[0, 0, 0, 0].item()
    xs_flat.append(prob_f.item() * xf)
    xs_peak.append(prob_p.item() * xf)
x_grid = np.linspace(0, 40, 81)
ax.fill_between(x_grid, 0, 0.08, color="0.92")
ax.bar(x_grid[::4], np.zeros(len(x_grid[::4])), width=0.4, color="0.85", edgecolor="0.7")
ax.plot(xs_flat, np.full(len(xs_flat), 0.04), "o", color="C3", label="flat mass")
ax.plot(xs_peak, np.full(len(xs_peak), 0.06), "o", color="C0", label="peaked mass")
ax.set_xlim(0, 40)
ax.set_ylim(0, 0.1)
ax.set_xlabel("forward X on floor (m)")
ax.set_yticks([])
ax.set_title("top-down: obstacle smear vs pin")
ax.legend(fontsize=8, loc="upper right")

ax = axes[1, 1]
floor = np.zeros((ny_prev, nx_prev))
floor[true_yi, true_xi] = 2.0
floor[half_yi, half_xi] = 1.0
ax.imshow(floor, origin="lower", cmap="Blues", extent=(0, 40, -15, 15), aspect="auto")
ax.scatter([raised_xyz[0].item()], [raised_xyz[1].item()], c="C2", s=80, marker="*", label="true depth")
ax.scatter([half_xyz[0].item()], [half_xyz[1].item()], c="C3", s=80, marker="x", label="half depth")
ax.set_xlabel("forward X (m)")
ax.set_ylabel("lateral Y (m)")
ax.set_title("wrong depth → wrong square")
ax.legend(fontsize=8, loc="upper right")

plt.tight_layout()
plt.show()

Output

front camera: 640 x 360
ground pixel uv: (320.00, 181.44)
raised pixel uv: (320.00, 171.20)
IPM ground X: 20.00
IPM raised X: 65.00
true X ground: 20.00
true X raised: 20.00
raised ray u=320.000 v=171.200 d=17.984

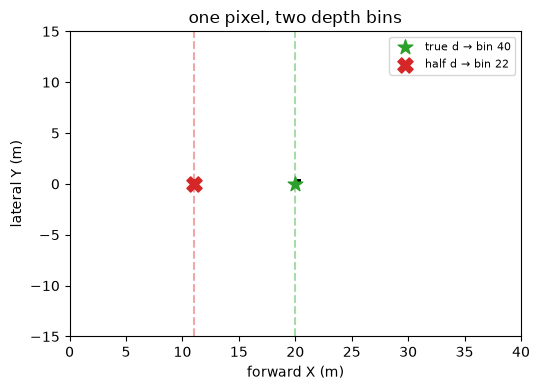

true bin x_idx=40 y_idx=30
half bin x_idx=22 y_idx=30
flat entropy: 3.00
peaked entropy: 0.0006
ray spread if flat: 40.0 m

The ground pixel (320.00, 181.44) maps back to IPM X 20.00. The raised pixel (320.00, 171.20) is only ten rows higher in the image, but the flat warp writes it at IPM X 65.00 while both true forward positions were 20.00. For the car, that is a phantom obstacle 45 m ahead — emergency braking on empty road.

The same raised pixel carries depth 17.984. Unprojecting with the true depth lands bin x_idx=40, y_idx=30. Halving depth (8.992) slides the pillar to x_idx=22 on the same row. A depth network that is confidently wrong moves occupancy cells the planner treats as real.

Flat depth entropy is 3.00 over a 40.0 m span along the ray; peaked entropy is 0.0006. The smear panel paints mass from near the bumper to far down the lane; the peaked panel concentrates on one forward strip. Section 2 names the math that produces those two curves.

2. Softmax turns logits into a depth pile

Lift assigns each pixel a vector of logits, one per depth bin. Softmax turns that vector into probabilities that sum to 1. The expected depth is the weighted sum of bin centers.

Predict: the toy three-bin softmax sums to 1. On DepthFeatureLift, every spatial location still sums to 1 along the depth axis.

In [3]

logits = torch.tensor([2.0, 0.0, -2.0])
depth_p = torch.softmax(logits, dim=0)
bins = torch.tensor([2.0, 11.0, 20.0])
expected = (depth_p * bins).sum()
print("softmax: [" + ", ".join(f"{v.item():.4f}" for v in depth_p) + "]")
print(f"softmax sum: {depth_p.sum().item():.4f}")
print(f"expected depth: {expected.item():.4f}")

torch.manual_seed(0)
lift = DepthFeatureLift(in_channels=4, out_channels=2, num_depth_bins=3)
probs, context = lift(torch.randn(1, 4, 2, 2))
print("probs.shape:", tuple(probs.shape))
print("context.shape:", tuple(context.shape))
print(f"probs.sum(dim=1) min: {probs.sum(dim=1).min().item():.4f}")
print(f"probs.sum(dim=1) max: {probs.sum(dim=1).max().item():.4f}")

Output

softmax: [0.8668, 0.1173, 0.0159]
softmax sum: 1.0000
expected depth: 3.3416
probs.shape: (1, 3, 2, 2)
context.shape: (1, 2, 2, 2)
probs.sum(dim=1) min: 1.0000
probs.sum(dim=1) max: 1.0000

Softmax on the toy logits yields [0.8668, 0.1173, 0.0159] summing to 1.0000, with expected depth 3.3416 on bins 2 m, 11 m, and 20 m. The real lift returns probs.shape (1, 3, 2, 2) and context.shape (1, 2, 2, 2); along dim 1 the sums stay at 1.0000. For driving, context is the appearance feature carried along whichever depth bin wins.

When logits are flat, softmax spreads probability across the whole ray — high entropy, wide smear on the BEV. A sharp peak lowers entropy and pins the obstacle.

Predict: entropy drops when logits spike on one bin. Spread in meters shrinks with a peak.

In [4]

num_bins = 20
depth_bins = torch.linspace(2.0, 42.0, num_bins)
flat_logits = torch.zeros(1, num_bins, 1, 1)
broken_probs = F.softmax(flat_logits, dim=1).squeeze()
true_bin = 9
peaked_logits = torch.full((1, num_bins, 1, 1), -5.0)
peaked_logits[0, true_bin, 0, 0] = 8.0
fixed_probs = F.softmax(peaked_logits, dim=1).squeeze()

entropy_broken = -(broken_probs * torch.log(broken_probs + 1e-9)).sum().item()
entropy_fixed = -(fixed_probs * torch.log(fixed_probs + 1e-9)).sum().item()
spread_meters = depth_bins[-1].item() - depth_bins[0].item()
peak_m = depth_bins[true_bin].item()
peak_pct = fixed_probs[true_bin].item() * 100.0
half_bin = (depth_bins[1] - depth_bins[0]).item() / 2.0

print(f"entropy flat: {entropy_broken:.2f}")
print(f"entropy peaked: {entropy_fixed:.4f}")
print(f"smear span: {spread_meters:.1f} m")
print(f"peak at: {peak_m:.1f} m")
print(f"peak probability: {peak_pct:.1f}%")
print(f"localization half-width: {half_bin:.2f} m")

keep_inline()

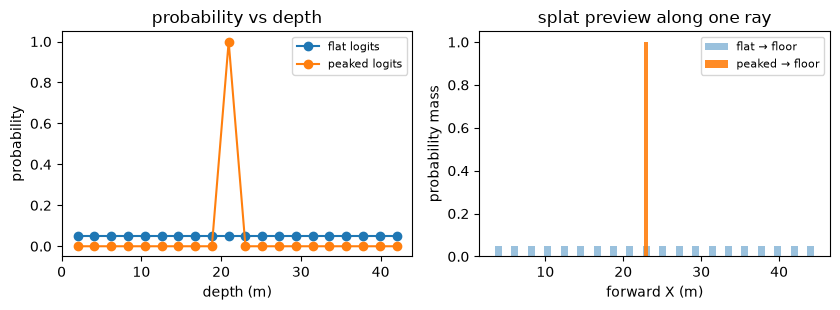

fig, axes = plt.subplots(1, 2, figsize=(8.5, 3.2))
axes[0].plot(depth_bins.numpy(), broken_probs.numpy(), "o-", label="flat logits")
axes[0].plot(depth_bins.numpy(), fixed_probs.numpy(), "o-", label="peaked logits")
axes[0].set_xlabel("depth (m)")
axes[0].set_ylabel("probability")
axes[0].set_title("probability vs depth")
axes[0].legend(fontsize=8)

mass_b = []
mass_f = []
x_centers = []
for pb, pf, d_c in zip(broken_probs, fixed_probs, depth_bins):
    pack = torch.tensor([u_raised * d_c, v_raised * d_c, d_c], dtype=torch.float32)
    xf = lss_geo.unproject_to_ego(pack.view(1, 1, 1, 3), K, R, T)[0, 0, 0, 0].item()
    x_centers.append(xf)
    mass_b.append(pb.item())
    mass_f.append(pf.item())
axes[1].bar(x_centers, mass_b, width=0.9, alpha=0.45, label="flat → floor")
axes[1].bar(x_centers, mass_f, width=0.5, alpha=0.9, label="peaked → floor")
axes[1].set_xlabel("forward X (m)")
axes[1].set_ylabel("probability mass")
axes[1].set_title("splat preview along one ray")
axes[1].legend(fontsize=8)
plt.tight_layout()
plt.show()

Output

entropy flat: 3.00
entropy peaked: 0.0006
smear span: 40.0 m
peak at: 20.9 m
peak probability: 100.0%
localization half-width: 1.05 m

Flat logits give entropy 3.00 and smear the obstacle across 40.0 m of depth. The peaked run drops entropy to 0.0006, puts 100.0% of mass at 20.9 m, and localizes within 1.05 m. The floor strip shows why: uniform depth paints many forward cells; a peak fills one column the motion planner must respect.

3. Unproject (u, v, d) into ego (X, Y, Z)

A frustum sample packs [u*d, v*d, d]. LiftSplatShoot.unproject_to_ego inverts the pinhole model with the camera's K, R, and T. Depth is camera-frame Z.

Predict: the raised point at 20 m forward, 1 m up, returns to itself. The flat warp had sent this pixel to 65 m.

In [5]

print(f"u={u_raised:.3f}")
print(f"v={v_raised:.3f}")
print(f"d={d_raised:.3f}")
print(f"pixel valid: {bool(valid_uv[0])}")

packed = torch.tensor([u_raised * d_raised, v_raised * d_raised, d_raised], dtype=torch.float32)
print(
    "packed [u*d, v*d, d]: "
    f"[{packed[0].item():.3f}, {packed[1].item():.3f}, {packed[2].item():.3f}]"
)

ego = lss_geo.unproject_to_ego(packed.view(1, 1, 1, 3), K, R, T).reshape(3).detach()
raised_xyz = torch.tensor([shown_meter(ego[i]) for i in range(3)])
print(
    "unprojected ego XYZ: "
    f"({raised_xyz[0].item():.3f}, {raised_xyz[1].item():.3f}, {raised_xyz[2].item():.3f})"
)

Output

u=320.000
v=171.200
d=17.984
pixel valid: True
packed [u*d, v*d, d]: [5754.898, 3078.873, 17.984]
unprojected ego XYZ: (20.000, 0.000, 1.000)

The pixel is u=320.000, v=171.200, depth d=17.984. Packed [5754.898, 3078.873, 17.984] unprojects to (20.000, 0.000, 1.000) — the raised torso, not the ground under it. Occupancy in a BEV stack must come from this ray geometry, not from a single ground intersection.

4. Splat into BEV bins

The top-down map is a grid of bins. x_bound is (x_min, x_max, step). Forward index is ((x - xmin) / step) cast with .long(); lateral index uses the same pattern. Out-of-range points drop. Two features that hit the same flat index add via index_add_.

Predict: two rows splatted into one cell sum feature-wise. A point behind the car fails the bounds check.

In [6]

x_bound = (0.0, 40.0, 0.5)
y_bound = (-15.0, 15.0, 0.5)
nx = int(round((x_bound[1] - x_bound[0]) / x_bound[2]))
ny = int(round((y_bound[1] - y_bound[0]) / y_bound[2]))
print(f"nx={nx}")
print(f"ny={ny}")

x_m = float(raised_xyz[0])
y_m = float(raised_xyz[1])
print(f"splat ego X={x_m:.3f} Y={y_m:.3f}")
x_idx = ((torch.tensor(x_m) - x_bound[0]) / x_bound[2]).long()
y_idx = ((torch.tensor(y_m) - y_bound[0]) / y_bound[2]).long()
print(f"x_idx={int(x_idx)}")
print(f"y_idx={int(y_idx)}")

grid = torch.zeros(2, ny * nx)
rows = torch.tensor([[1.0, 0.0], [0.5, 2.0]])
flat = int(y_idx) * nx + int(x_idx)
grid.index_add_(1, torch.tensor([flat, flat]), rows.T)
cell = grid[:, flat]
print(f"cell feature: [{cell[0].item():.1f}, {cell[1].item():.1f}]")
print(f"grid sum: {grid.sum().item():.1f}")

x_behind = -5.0
x_idx_behind = ((torch.tensor(x_behind) - x_bound[0]) / x_bound[2]).long()
valid_behind = bool(
    (int(x_idx_behind) >= 0)
    and (int(x_idx_behind) < nx)
    and (int(y_idx) >= 0)
    and (int(y_idx) < ny)
)
print(f"behind X={x_behind:.1f} x_idx={int(x_idx_behind)} valid={valid_behind}")
print(f"grid sum after discard: {grid.sum().item():.1f}")

keep_inline()
heat = grid[0].view(ny, nx)
r0, r1 = int(y_idx) - 2, int(y_idx) + 3
c0, c1 = int(x_idx) - 2, int(x_idx) + 3
window = heat[r0:r1, c0:c1]
print(f"heatmap window max: {window.max().item():.1f}")
plt.figure(figsize=(3.2, 3.2))
plt.imshow(window.detach(), cmap="magma", origin="lower")

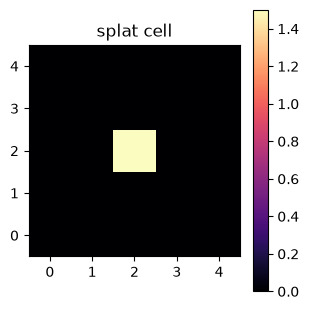

plt.title("splat cell")
plt.colorbar()
plt.tight_layout()
plt.show()

Output

nx=80
ny=60
splat ego X=20.000 Y=0.000
x_idx=40
y_idx=30
cell feature: [1.5, 2.0]
grid sum: 3.5
behind X=-5.0 x_idx=-10 valid=False
grid sum after discard: 3.5
heatmap window max: 1.5

The grid is nx=80 by ny=60. The raised point at X=20.000, Y=0.000 lands at x_idx=40, y_idx=30. Two camera rows adding into that cell give [1.5, 2.0]. A point at X=-5.0 is valid=False, so nothing behind the ego pollutes the map — important so reverse lane ghosts do not appear in forward planning.

5. Shoot: a small top-down convolution

Shoot is a convolution on the splatted map. Padding keeps height and width fixed so each cell can borrow context from neighbors without resizing the grid.

Predict: a 3×3 conv with padding 1 keeps a 5×5 toy map at 5×5. The module's BEV encoder does the same on a 20×20 grid.

In [7]

toy = torch.zeros(1, 1, 5, 5)
toy[0, 0, 2, 2] = 1.0
conv = torch.nn.Conv2d(1, 1, kernel_size=3, padding=1, bias=False)
torch.nn.init.ones_(conv.weight)
toy_out = conv(toy)
print("toy out shape:", tuple(toy_out.shape))
for row in toy_out.squeeze().detach():
    print(" ".join(f"{v.item():.0f}" for v in row))

torch.manual_seed(0)
lss_shoot = LiftSplatShoot(
    in_channels=4,
    out_channels=4,
    num_depth_bins=4,
    d_min=2,
    d_max=20,
    x_bound=(0, 20, 1),
    y_bound=(-10, 10, 1),
)
n_conv = sum(isinstance(layer, torch.nn.Conv2d) for layer in lss_shoot.bev_encoder)
print("bev_encoder convs:", n_conv)
zeros = torch.zeros(1, 4, 20, 20)
with torch.no_grad():
    enc = lss_shoot.bev_encoder(zeros)
print("encoder in shape:", tuple(zeros.shape))
print("encoder out shape:", tuple(enc.shape))

Output

toy out shape: (1, 1, 5, 5)
0 0 0 0 0
0 1 1 1 0
0 1 1 1 0
0 1 1 1 0
0 0 0 0 0
bev_encoder convs: 2
encoder in shape: (1, 4, 20, 20)
encoder out shape: (1, 4, 20, 20)

The toy map stays (1, 1, 5, 5); the center row reads 0 1 1 1 0, a 3×3 neighborhood from one hot cell. bev_encoder convs: 2. Zeros (1, 4, 20, 20) encode to the same shape. For the vehicle, shoot is the cheap spatial denoising step after splatting — smoothing phantom speckle without blurring the whole map off-grid.

6. Shapes the repo actually returns

Match the module test: ten depth bins from 2 m to 20 m, 1 m BEV cells. Then run the three-camera script.

Predict: frustum rank is depth × height × width × 3. Probabilities sum to 1 on depth. Forward pass yields (1, 32, 20, 20) on the toy bounds.

In [8]

torch.manual_seed(0)
lss_shapes = LiftSplatShoot(
    in_channels=16,
    out_channels=32,
    d_min=2,
    d_max=20,
    num_depth_bins=10,
    x_bound=(0, 20, 1),
    y_bound=(-10, 10, 1),
)
frustum = lss_shapes.create_camera_frustum(8, 16, torch.device("cpu"))
print("frustum shape:", tuple(frustum.shape))
print(f"depth min: {frustum[..., 2].min().item():.1f}")
print(f"depth max: {frustum[..., 2].max().item():.1f}")

torch.manual_seed(0)
lift_test = DepthFeatureLift(16, 32, 10)
lift_feat = torch.randn(2, 16, 8, 16)
probs6, context6 = lift_test(lift_feat)
sums6 = probs6.sum(dim=1)
print("probs.shape:", tuple(probs6.shape))
print("context.shape:", tuple(context6.shape))
print(f"sum dim 1 min: {sums6.min().item():.4f}")
print(f"sum dim 1 max: {sums6.max().item():.4f}")

B, N_cams = 1, 2
torch.manual_seed(0)
feats6 = torch.randn(B, N_cams, 16, 8, 16)
K6 = torch.eye(3).view(1, 1, 3, 3).repeat(B, N_cams, 1, 1)
R6 = torch.eye(3).view(1, 1, 3, 3).repeat(B, N_cams, 1, 1)
T6 = torch.zeros(3, 1).view(1, 1, 3, 1).repeat(B, N_cams, 1, 1)
with torch.no_grad():
    bev_out = lss_shapes(feats6, K6, R6, T6)
print("bev_out.shape:", bev_out.shape)
print("nan count:", int(torch.isnan(bev_out).sum().item()))

Output

frustum shape: (10, 8, 16, 3)
depth min: 2.0
depth max: 20.0
probs.shape: (2, 10, 8, 16)
context.shape: (2, 32, 8, 16)
sum dim 1 min: 1.0000
sum dim 1 max: 1.0000
bev_out.shape: torch.Size([1, 32, 20, 20])
nan count: 0

Frustum shape (10, 8, 16, 3) spans depth 2.0 to 20.0. Lift returns probs (2, 10, 8, 16) and context (2, 32, 8, 16) with depth sums pinned at 1.0000. One forward pass yields torch.Size([1, 32, 20, 20]) and nan count: 0 — the tensor shape the unit tests assert.

The checked-in driver builds front, left, and right rigs and runs lift, splat, and shoot together.

Predict: batch 1, three cameras in, BEV tensor wider in X than a single-camera toy run.

In [9]

print("cameras: front, left, right")
subprocess.run(
    [sys.executable, "modules/03_bev_transform/run_bev.py"],
    check=True,
    cwd=REPO,
)

Output

cameras: front, left, right

Output


======================================================================
🦅 MODULE 03: MULTI-CAMERA BIRD'S-EYE VIEW (BEV) LIFT-SPLAT-SHOOT
======================================================================
Executing Lift-Splat-Shoot transformation across 3 camera feeds...
  Input camera features shape: torch.Size([1, 3, 32, 16, 32])
  Output BEV feature map shape: torch.Size([1, 64, 60, 80]) (B, Channels, Y_bins, X_bins)
  Metric coverage: 0.0m to 40.0m forward, -15.0m to 15.0m lateral
  Resolution: 0.5m per grid cell

✅ BEV transformation completed successfully!
The 3 separate 2D camera views have been seamlessly fused into a top-down metric plane.

Output

CompletedProcess(args=['/usr/bin/python3', 'modules/03_bev_transform/run_bev.py'], returncode=0)

Input torch.Size([1, 3, 32, 16, 32]) fuses to output torch.Size([1, 64, 60, 80]). Coverage is 0.0m to 40.0m forward and -15.0m to 15.0m lateral at 0.5m cells. That is the multi-camera BEV feature map a downstream head would read for lanes and obstacles.

7. The wrong depth bin lands in the wrong pillar

Same pixel and camera as above. Halving depth is the deliberate mistake: the network guessed too close. Bin both landings on the half-meter floor grid.

Predict: half depth moves the pillar toward the ego. True depth restores x_idx=40.

In [10]

d_half = d_raised / 2.0
print(f"half d={d_half:.3f}")
packed_half = torch.tensor(
    [u_raised * d_half, v_raised * d_half, d_half], dtype=torch.float32
)
ego_half = lss_geo.unproject_to_ego(packed_half.view(1, 1, 1, 3), K, R, T).reshape(3).detach()
half_xyz = torch.tensor([shown_meter(ego_half[i]) for i in range(3)])
print(
    "half XYZ: "
    f"({half_xyz[0].item():.3f}, {half_xyz[1].item():.3f}, {half_xyz[2].item():.3f})"
)

true_xi, true_yi = bin_index(raised_xyz[0], raised_xyz[1])
half_xi, half_yi = bin_index(half_xyz[0], half_xyz[1])
print(
    "true XYZ: "
    f"({raised_xyz[0].item():.3f}, {raised_xyz[1].item():.3f}, {raised_xyz[2].item():.3f})"
)
print(f"true x_idx={true_xi} y_idx={true_yi}")
print(f"half x_idx={half_xi} y_idx={half_yi}")

ego_fix = lss_geo.unproject_to_ego(packed.view(1, 1, 1, 3), K, R, T).reshape(3).detach()
fix_xyz = torch.tensor([shown_meter(ego_fix[i]) for i in range(3)])
fix_xi, fix_yi = bin_index(fix_xyz[0], fix_xyz[1])
print(
    "fixed XYZ: "
    f"({fix_xyz[0].item():.3f}, {fix_xyz[1].item():.3f}, {fix_xyz[2].item():.3f})"
)
print(f"fixed x_idx={fix_xi} y_idx={fix_yi}")

keep_inline()
floor = np.zeros((ny_prev, nx_prev))
floor[true_yi, true_xi] = 2.0
floor[half_yi, half_xi] = 1.5
fig, ax = plt.subplots(figsize=(5.5, 4.0))
ax.imshow(floor, origin="lower", cmap="Greys", extent=(0, 40, -15, 15), aspect="auto", vmin=0, vmax=2)
ax.scatter([raised_xyz[0].item()], [raised_xyz[1].item()], c="C2", s=120, marker="*", label=f"true d → bin {true_xi}")
ax.scatter([half_xyz[0].item()], [half_xyz[1].item()], c="C3", s=120, marker="X", label=f"half d → bin {half_xi}")
ax.axvline(raised_xyz[0].item(), color="C2", ls="--", alpha=0.4)
ax.axvline(half_xyz[0].item(), color="C3", ls="--", alpha=0.4)
ax.set_xlabel("forward X (m)")
ax.set_ylabel("lateral Y (m)")
ax.set_title("one pixel, two depth bins")
ax.legend(fontsize=8, loc="upper right")
plt.tight_layout()
plt.show()

Output

half d=8.992
half XYZ: (11.000, 0.000, 1.200)
true XYZ: (20.000, 0.000, 1.000)
true x_idx=40 y_idx=30
half x_idx=22 y_idx=30
fixed XYZ: (20.000, 0.000, 1.000)
fixed x_idx=40 y_idx=30

True depth (20.000, 0.000, 1.000) sits at x_idx=40, y_idx=30. Half depth 8.992 lands at (11.000, 0.000, 1.200) → x_idx=22. Lateral index stays 30; only forward bin moves. Fixing depth returns fixed x_idx=40. A single mis-ranked softmax bin shifts occupied cells nine meters forward — inside the braking envelope.

8. Exercises

Three checks. Each stub still raises, so the cell falls back to a reference that calls the real API. Replace the TODO when you want the check to call your function.

Exercise 1. Sum the depth probabilities along the depth axis.

Predict: every spatial location sums to 1, and the probability tensor keeps ten depth bins.

In [11]

def depth_sum_student(features):
    # TODO: return depth probabilities summed along the depth axis
    raise NotImplementedError

def depth_sum_reference(features):
    lift_ex = DepthFeatureLift(in_channels=16, out_channels=32, num_depth_bins=10)
    probs_ex, _context_ex = lift_ex(features)
    print("probs.shape:", tuple(probs_ex.shape))
    return probs_ex.sum(dim=1)

def get_depth_sum():
    try:
        depth_sum_student(torch.zeros(1, 16, 2, 2))
    except NotImplementedError:
        print("Using reference depth_sum_student (TODO not implemented)")
        return depth_sum_reference
    print("Using your depth_sum_student")
    return depth_sum_student

torch.manual_seed(0)
ex_feat = torch.randn(2, 16, 8, 16)
depth_fn = get_depth_sum()
depth_sums = depth_fn(ex_feat)
assert torch.allclose(depth_sums, torch.ones_like(depth_sums), atol=1e-5, rtol=1e-5)
print("sum shape:", tuple(depth_sums.shape))
print("✅ correct: depth probabilities sum to 1")

Output

Using reference depth_sum_student (TODO not implemented)
probs.shape: (2, 10, 8, 16)
sum shape: (2, 8, 16)
✅ correct: depth probabilities sum to 1

Fallback line Using reference depth_sum_student (TODO not implemented) then ✅. probs.shape is (2, 10, 8, 16). Depth must normalize so splatting does not invent mass from nowhere.

Solution

def depth_sum_student(features):
    lift_ex = DepthFeatureLift(in_channels=16, out_channels=32, num_depth_bins=10)
    probs_ex, _context_ex = lift_ex(features)
    return probs_ex.sum(dim=1)

Exercise 2. Return the camera frustum shape for an 8×16 feature map.

Predict: ten depth bins, then height, width, and 3 coordinates.

In [12]

def frustum_shape_student(lss, h, w):
    # TODO: return the frustum shape as a tuple
    raise NotImplementedError

def frustum_shape_reference(lss, h, w):
    return tuple(lss.create_camera_frustum(h, w, torch.device("cpu")).shape)

def get_frustum_shape():
    try:
        frustum_shape_student(lss_shapes, 8, 16)
    except NotImplementedError:
        print("Using reference frustum_shape_student (TODO not implemented)")
        return frustum_shape_reference
    print("Using your frustum_shape_student")
    return frustum_shape_student

frustum_fn = get_frustum_shape()
frustum_shape = frustum_fn(lss_shapes, 8, 16)
assert frustum_shape == (10, 8, 16, 3)
print("frustum shape:", frustum_shape)
print("✅ correct: frustum shape matches")

Output

Using reference frustum_shape_student (TODO not implemented)
frustum shape: (10, 8, 16, 3)
✅ correct: frustum shape matches

Reference fallback then ✅. Frustum shape (10, 8, 16, 3) is the lift input geometry the splat step expects.

Solution

def frustum_shape_student(lss, h, w):
    return tuple(lss.create_camera_frustum(h, w, torch.device("cpu")).shape)

Exercise 3. Return the BEV output shape for the same identity calibration as section 6.

Predict: batch 1, 32 channels, 20×20 grid.

In [13]

def bev_shape_student(lss, feats, K_mat, R_mat, T_mat):
    # TODO: return the BEV output shape as a tuple
    raise NotImplementedError

def bev_shape_reference(lss, feats, K_mat, R_mat, T_mat):
    return tuple(lss(feats, K_mat, R_mat, T_mat).shape)

def get_bev_shape():
    try:
        bev_shape_student(lss_shapes, feats6, K6, R6, T6)
    except NotImplementedError:
        print("Using reference bev_shape_student (TODO not implemented)")
        return bev_shape_reference
    print("Using your bev_shape_student")
    return bev_shape_student

bev_fn = get_bev_shape()
with torch.no_grad():
    bev_shape = bev_fn(lss_shapes, feats6, K6, R6, T6)
assert bev_shape == (1, 32, 20, 20)
print("bev shape:", bev_shape)
print("✅ correct: BEV shape matches")

Output

Using reference bev_shape_student (TODO not implemented)
bev shape: (1, 32, 20, 20)
✅ correct: BEV shape matches

Reference fallback then ✅. BEV shape (1, 32, 20, 20) matches the forward pass in section 6.

Solution

def bev_shape_student(lss, feats, K_mat, R_mat, T_mat):
    return tuple(lss(feats, K_mat, R_mat, T_mat).shape)

9. Recap

Flat IPM put the road point at X 20.00 and the raised point at 65.00 from pixels (320.00, 181.44) and (320.00, 171.20).
Flat depth entropy 3.00 smeared 40.0 m; peaked entropy 0.0006 with 100.0% at 20.9 m localized within 1.05 m.
Softmax toy [0.8668, 0.1173, 0.0159] summed to 1.0000; expected depth 3.3416.
Unproject at d=17.984 restored (20.000, 0.000, 1.000) at bin x_idx=40, y_idx=30 on an nx=80, ny=60 grid; two splats summed to [1.5, 2.0].
Toy shoot stayed (1, 1, 5, 5); encoder (1, 4, 20, 20) → (1, 4, 20, 20).
Test forward torch.Size([1, 32, 20, 20]); three-camera script torch.Size([1, 64, 60, 80]).
Half depth moved the pillar to x_idx=22; true depth returned x_idx=40.

Bird's-Eye View (BEV) Transform

Tutorial

1. Flat ground, smeared rays, wrong squares

2. Softmax turns logits into a depth pile

3. Unproject (u, v, d) into ego (X, Y, Z)

4. Splat into BEV bins

5. Shoot: a small top-down convolution

6. Shapes the repo actually returns

7. The wrong depth bin lands in the wrong pillar

8. Exercises

9. Recap

Go deeper
